5.0m Standard Manual Awning, Multi Stripe

Our awnings combine excellent quality with superb value for money

Our standard awnings combine superior quality with great value for money. Finished to a very high

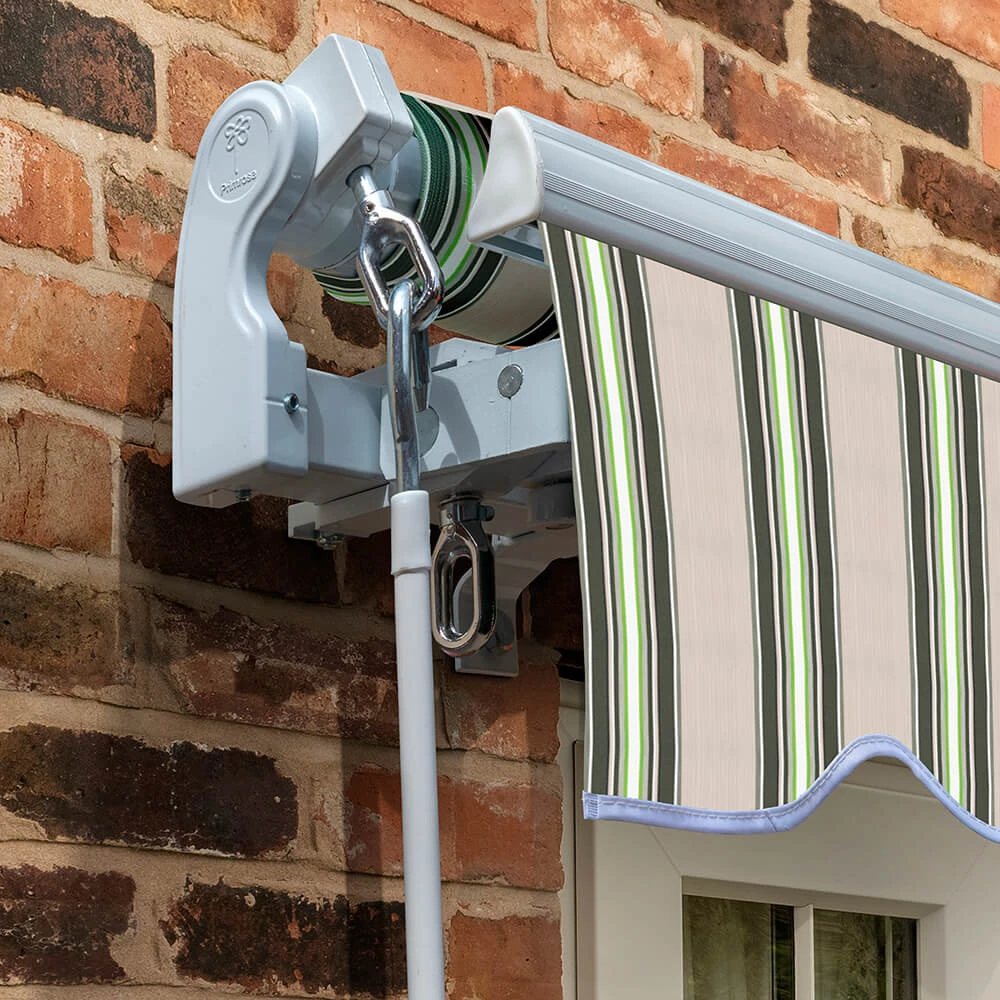

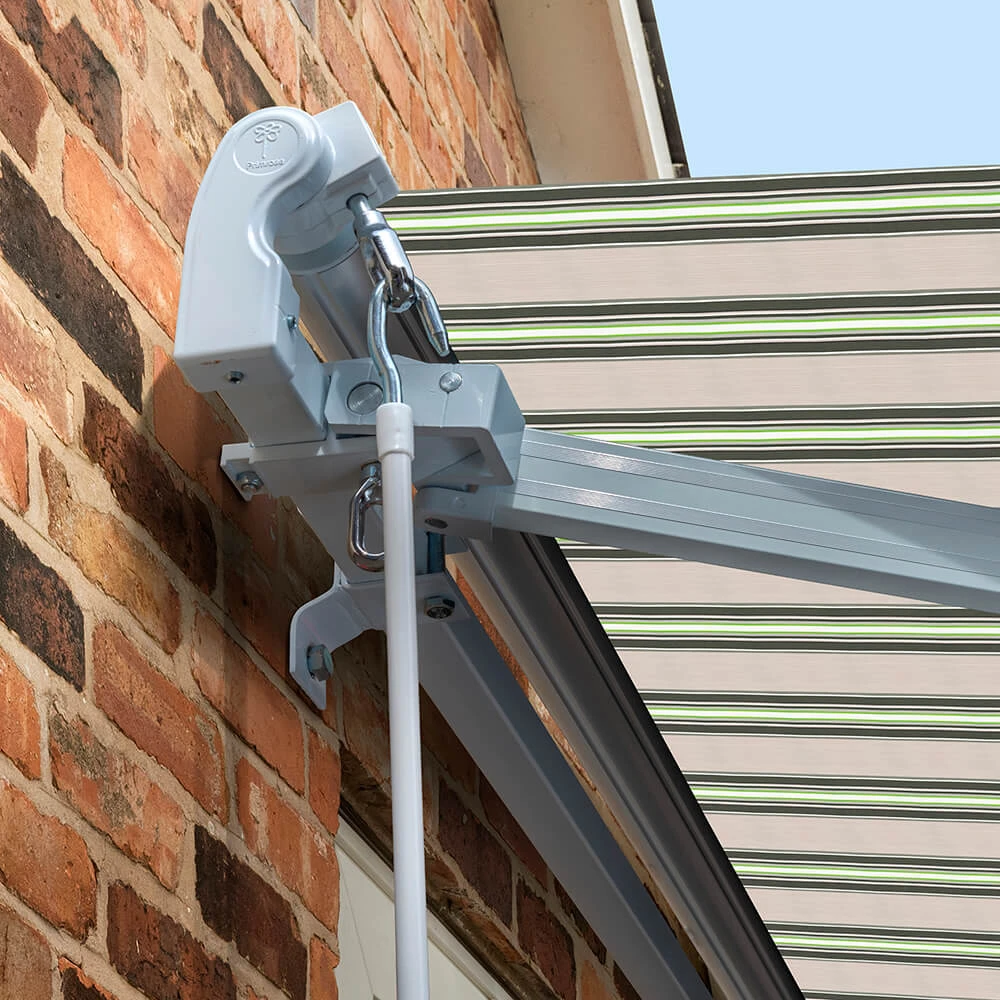

specification, they have a strong lightweight metal frame with powder coated aluminium arms and a 40 x 40mm torsion bar. They can be opened and closed easily and smoothly using the winding handle on the left hand side (see pictures to the right). The awning can be opened as much or as little as you like up to the maximum projection. The specially designed elliptical arms are adjustable to enable you to alter the slope of
the awning from almost horizontal to a relatively steep tilt of approximately 35 degrees from the horizontal.

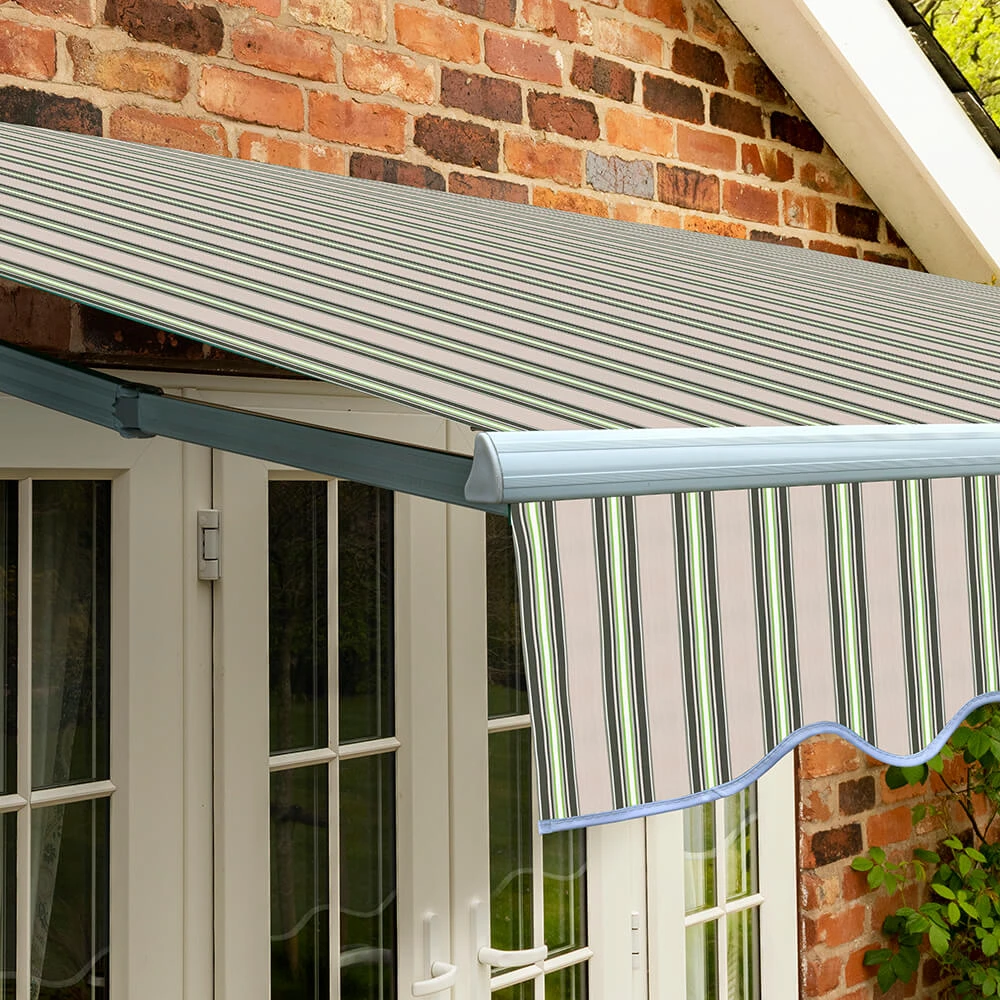

The aluminium front bar ensures the fabric hangs smoothly.

Torsion bar: 40mm x 40mm
Aluminium roller: Diameter 78mm
Aluminium front bar: 56 x 43mm
Aluminium support arms: 59 x 31mm, 51 x 26mm

All our awnings come with the correct number of wall mounting brackets as standard. This awning can also be mounted onto ceilings, balconies or overhangs with specially designed ceiling brackets.
